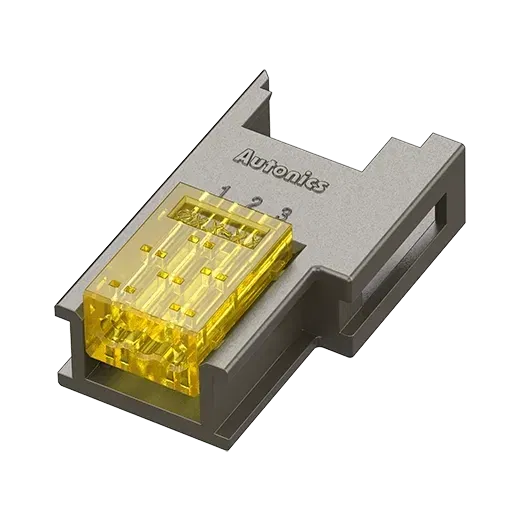

CNE-S03-YW - Sensor Connectors
Sensor Connector
- SKU:
- CNE-S03-YW
- Category:
- Proximity Sensors
- Brand:
$13.98
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- AWG
- AWG24-26
- Material
- Body: PBS (UL94V-0), Terminal: C510 (gold 0.2m),Case: PC (UL94-V0)
- Insertion
- Max. 1.96N (200gfin
- Extraction
- Min. 0.49N (50fin
- Cover color
- Yellow
- Power voltage
- ?32VACDC(=)
- Rated current
- Max. 3.0A
- Cover diameter
- 1.0 t1.2mm
- Number of pins
- 3-pin
- Terminal retention
- Min. 1.4kgf
- Nominal cross Section Area
- 0.13 to 0.21mm sq
Description
The CNE-S03-YW is an M12 3-pin male field-wireable sensor connector in yellow. The yellow color-coding provides an additional identification tier in large installations using multi-color connector schemes. Compatible with standard M12 female sensor cable assemblies, it supports 3-wire sensor configurations including single NPN or PNP output devices.
