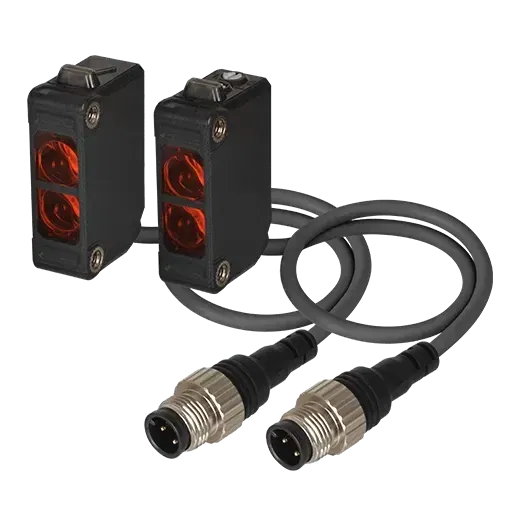

BJR15M-TDT-W-P-F - Oil-Resistant/Oil-Proof Photoelectric Sensors
Oil-Resistant Sensor
- SKU:
- BJR15M-TDT-W-P-F
- Category:
- Proximity Sensors
- Brand:
$144.30
Share product:
100% Guarantee Safe Checkout
Shipping calculated at the checkout
Specifications
- Weight
- Approx.105g(approx. 55)
- Material
- Case: Acrylonitrile butadiene styrene, LED Cap: PA12, Lens cover: Polymethyl Methacrylate Acrylic
- Light source
- Infrared LED(850m)
- Sensing type
- Through-beam type
- Power voltage
- 1030VDC (=) 10%(ripple P-P: max.10%)
- Response time
- Max. 1ms
- Control output
- PNP open collector
- Operation mode
- Light Oark ON(set by switch)
- Sensing target
- Opaque material of min. 12mm
- Connection type
- 4mm, 3-wire,300mm (emitter of through-beam type: 4mm, 2-wire,300mm), M12 connector(AWG26, core diameter: 0.52mm, number of cores: 20, insulator out diameter: 1mm)
- Sensing distance
- 15m
- Accessories_Common
- Fixing bracket, M3 Bolts: 4, M3 Nuts: 4, Adjuster driver
- Current consumption
- Emitteeceiver: Max. 20mA
- Oil resistanil proof
- Oil proof type
- Protection structure
- IP67(IEC standard), IP67F(JEM standard)
- Sensitivity adjustment
- Sensitivity adjuster
- Environment_Ambient humidity
- 35 to 85% RH, storage: 35 to 85% RH
- Environment_Ambient temperature
- -25 to 60, storage: -40 to 70
- Environment_Ambient illumination
- Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Description
The BJR15M-TDT-W-P-F is an oil-resistant thru-beam photoelectric sensor with a 15-meter sensing range, PNP output, and oil-proof cable. Built for demanding machining and metalworking environments, the sealed housing resists penetration from cutting fluids and industrial lubricants. Its long sensing range makes it applicable for detecting workpieces or pallets across wide machine tool beds and transfer lines.
