VZM450-01-00

Description

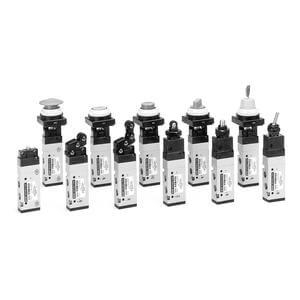

The VZM series is a 5 port mechanical valve. It is compact in design with a large flow capacity (VZM400 Cv 0.55, VZM500 Cv 0.6). The VZM is available in a metal or rubber spool style, with a variety of actuator choices and optional external pilot. - Fluid: air, inert gas - Operating pressure: 0.15 to 1.0MPa - Ambient and fluid temp: -5° to 60°C (no freezing) - Effective area (Cv): 0.55 - Port size: main valve Rc(PT) 1/8, pilot valve (EXH) M5x0.8
