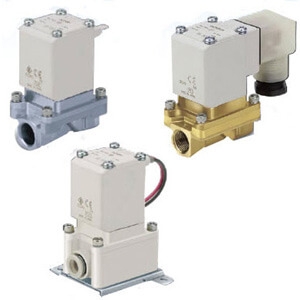

VXZ236ACA

Description

The VXZ series for high temperature oil is a 2 port, pilot operated solenoid valve capable of operating at higher differential pressures by maintaining a zero differential pressure on the seat. The molded coil offers low power consumption, long life and high reliability. FKM seal and Class H coil insulation type are standard. Available port sizes 1/4 to 1 inch. Flow rate ranges from Cv of 1.9 to 10.2 - Body material: brass, stainless steel - Medium: high temperature oil, -5 to 100°C - Maximum pressure: 1.5 MPa - IP65 enclosure - Valve type: Normally Closed, Normally Open
