VXD236BB

Description

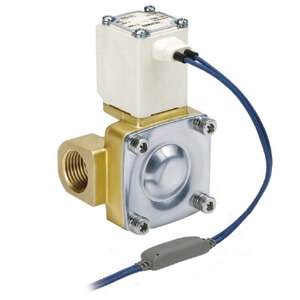

SMC's updated VXD series for oil (viscosity not exceed 50mm²/s) is a pilot operated, 2 port solenoid valve. FKM seal material and Class H coil insulation to suit the high fluid temperature application are standard. Available in brass and stainless steel. Flow rate ranges from Cv of 1.9 to 49 - IP65 enclosure - For use with high temperature oil, viscosity not exceed 50mm²/s - Fluid temperature: -5 to 100°C - Class H coil insulation - Port size: 1/4 to 1 inch. Flange: 32A to 50A
