VQD1000-V-01-5MO

Description

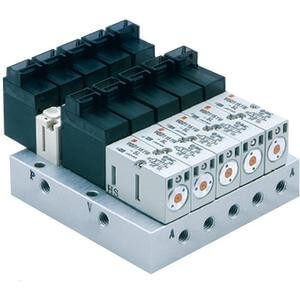

VQD1000 series 4 port, direct operated, poppet solenoid valve offers large flow capacity in a compact, lightweight body. Vacuum applications (up to -100kPa) are possible. Components of the VQD1000 valves that are in contact with fluid are all copper free. The VQD series offers a remarkably quick and stable response time. - Response speed 13 msec (at 500 mm)/18.5 msec (at 1000mm) - Smooth detachment of a work piece without over-blow - No need to adjust the timing when switching between vacuum and positive pressure - No need to design a restrictor circuit for release air - Operating pressure:  Suction (negative pressure): 0 to -100 kPa, Release (positive pressure) : 0 to 0.7 MPa
