VHK2A-04F-04FR

Description

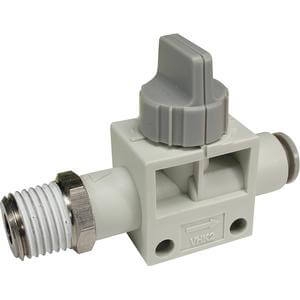

Finger valve series VHK has a large effective area of 2.0 to 17.5mm². This series begins with a minimum tube O.D of ø4. The valve direction clearly indicates whether the valve is open or closed (shut to open is counter- clockwise). Classification of knob by color difference facilitates distinction between 2 port valves (gray) and 3 port valves (blue). The optional flame resistant model's knob, whether using the 2 or 3 port valve, is red. - Finger valve, standard - 2 or 3 port available - Effective area: 2.0 to 17.5mm² - Max. operating pressure: 1.0MPa - Fluid: air
