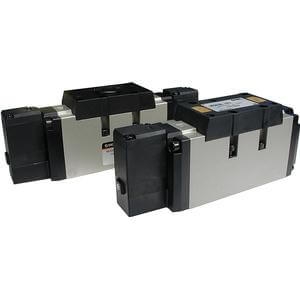

VFS4100-2FZ

Description

Series VFS consists of 5 port pilot solenoid valves with metal seals and base mounted or body ported type manifolds. Base mounted manifolds are available in plug-in and non plug-in styles. Body ported manifolds are available with bar or separate type manifold bases. Port sizes range from 1/8 to 3/4 with Rc(PT), NPTF & G(PF) thread types available. Various options also available. - Fluid: air and inert gas - Operating pressure: 0.1MPa to 1.0MPa - Effective area (Cv): 1.7 to 3.6 - Coil rated voltage: 100, 200 VAC 50/60Hz; 24VDC - Response time: 55 or less ms - Ambient/fluid temp: -10 to +60°C
