CY1L6H-50

Description

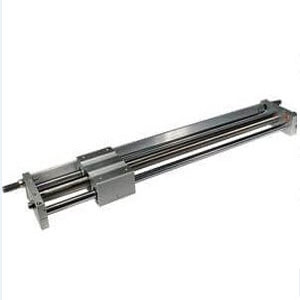

The CY1L Rodless Cylinder - Magnetically Coupled uses industrial strength magnets located in the piston and external carriage to form a single unit that will travel when actuated with air pressure.  It is available in a standard or heavy duty magnetic holding force.  It is a one piece unit integrated with ball bushing bearings which allows for smooth operation and ensures stable travel resistance. - Bore sizes: 6, 10, 15, 20, 25, 32, 40 mm - Stroke length: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, 1500 mm - Minimum operating pressure: 0.18 Mpa (26 psi) - Speed: 50 ~ 500 mm/sec. - Options: XB9 - Low Speed (15 ~ 50 mm/sec.), XB13 - Ultra Low Speed (7 ~ 50 mm/sec.) - Auto switch capable
