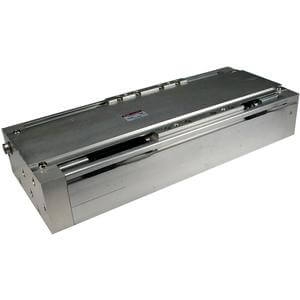

CY1H10-100BS

Description

The CY1H high precision Rodless Cylinder - Magnetically Coupled uses industrial strength magnets located in the piston and external carriage to form a single unit that will travel when actuated with air pressure. It is installed with either a single axis or dual axis internal linear guides to support larger load and moment as well as greater precision than the CY1S or CY1L Series. - Bore sizes: 10, 15, 20, 25, 32 mm - Stroke lengths: 100, 200, 300, 400, 500, 600, 800, 1000, 1200, 1500 mm - Minimum operating pressure: 0.2 MPa (29 psi) - Speed: 70 ~ 500 mm/sec. - Available with external shock absorbers
