PFM511-02-2-N-Z

Description

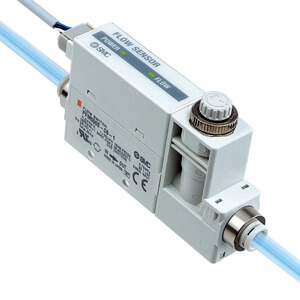

PFM5 is a air flow sensor compatible with air, nitrogen, argon and carbon dioxide.  This is the remote version of PFM7, without a display.  The top panel includes two LEDs to indicate power and flow functions.  Options include inline or bottom piping entry, cable connector type, a manual flow adjustment valve, and panel or bracket mounts.  An analog voltage or current ouput is available.  PFM5 is IP40 rated, and C-UL-US and CE compliant.  Please consider the PFG digital flow monitor for displaying this sensor's outputs.  Also compatible with the PFM3 monitor. - Flow ranges (lpm): 0.2-10, 0.5-25, 1-50, 2-100 - Port sizes: 1/8 or 1/4 (Rc, NPT, G); ø4, ø6, ø8 or ø1/4" one-touch fittings - Rated pressure range (MPa): -0.07 to 0.75 - Output options: 1-5V or 4-20mA - Accuracy: ±3% F.S. - Repeatability: ±1% F.S.
