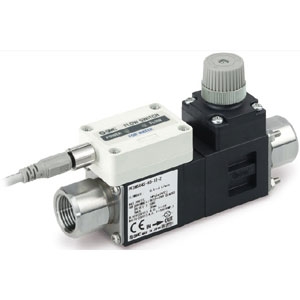

PF3W520-N03-1N

Description

PF3W is a digital flow sensor that constantly monitors water or coolant flow.  PF3W refreshes the design and operating performance of the legacy PF2W model.  This is the remote version of PF3W7, with a display.  One or two analog outputs are available, depending on whether the optional temperature sensor is selected.  Additional options include a mounting bracket, flow adjustment valve and M8 lead wire.  PF3W is grease-free, IP65 rated, and C-UL-US, CE and RoHS compliant. - Flow ranges (lpm): 0.5-4, 2-16, 5-40, 10-100, 50-250 - Port sizes (Rc, NPT, G): 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2 (flow range dependent) - Temperature rating: 0-90°C - Output options: 1-5V or 4-20mA - Accuracy: ±3% F.S. - Repeatability: ±2% F.S.
