PF2W504T-N03N

Description

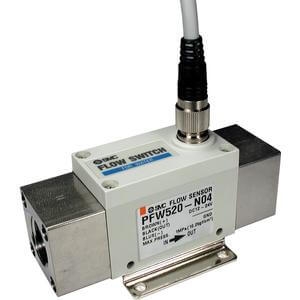

PF2W is a digital flow sensor for water or coolant.  This is a legacy sensor, refreshed in 2009 as PF3W.  "T" indicates the higher temperature rating.  This is the remote version of PF2W7*T, without a display.  The mounting bracket is integrated into the body, while the M12 lead wire is optional.  PF2W5 can be paired with a PF2W200 or PF2W300 remote monitor to display instantaneous or accumulated flow values.  An optional analog output is also available.  PF2W5 is IP65 rated and CE compliant. - Flow ranges (lpm): 0.5-4, 2-16, 5-40 - Port sizes (Rc, NPT, G): 3/8, 1/2, 3/4 (flow range dependent) - Temperature rating: 0-90°C - Output options: 1-5V, 4-20mA - Accuracy: ±5% F.S. - Repeatability: ±2% F.S.
