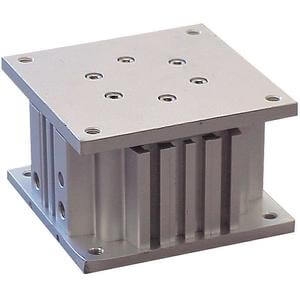

MGF40TF-30

Description

The MGF low profile guide table integrates a compact cylinder to a large diameter concentric guide sleeve to handle loads applied from any direction providing equal eccentric load resistance through 360°. Using the guide sleeve instead of guide rods reduces the unit's weight by 15% and eliminates eccentric load capacity variances caused by load orientation. An internal non-rotating pin has been added to prevent rotation of the top plate. - Bore sizes: 40, 63, 100 mm - Stroke lengths: 30, 50, 75, 100 - Non-rotating accuracy +/-0.08° for 40 mm bore - Non-rotating accuracy +/-0.06° for 63 mm bore - Non-rotating accuracy +/-0.05° for 100 mm bore - Auto switch capable
