LEY63DS4A-200

Description

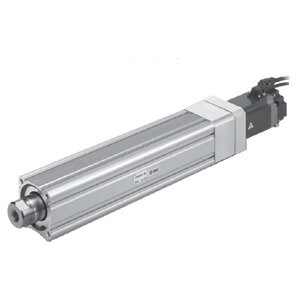

The LEY63 rod is exclusively available with a 400W AC servo motor, available with incremental or absolute encoder.  4 ball screw pitch options assist in optimizing force and speed.  LEY63 also offers an IP65 option.  Optional drivers include pulse input and various communication protocols including Ethernet.   - IP5x or IP65 (option “P”) - Maximum work load: 200 kg (horizontal); 115 kg (vertical)(T motor spec, top/parallel mount) - Maximum pushing force: 1910 N - Maximum stroke: 800mm - Positioning repeatability: ±0.02mm, ±0.01mm (high precision option) - Encoder resolution: 17-bit (S motor), 22-bit (T motor), 20-bit (V motor)
