LEY100T9D-200M

SKU:
LEY100T9D-200M
Category:
Rod

$4,225.00

Share product:

100% Guarantee Safe Checkout

Stripe icon

Shipping calculated at the checkout

Description

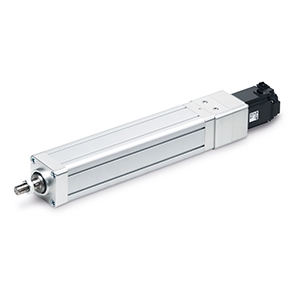

LEY100 is a rod actuator size exclusively fitted with an inline or parallel mounted 750W AC servo motor, with or without a lock.  Three ballscrew pitch options assist in optimizing force and speed.  The actuator can have a male or female rod end paired with tapped ends, foot double clevis or rod flange bracket for ISO15552 mounting.  Optional drivers include pulse input or five different fieldbus types including Ethernet.   - Maximum work load: 1200kg (horizontal); 200kg (vertical) - Maximum pushing force: 12,000N - Maximum stroke: 1000mm - Positioning repeatability: ±0.02mm - Encoder resolution (absolute): 18- or 22-bit (driver dependent)
