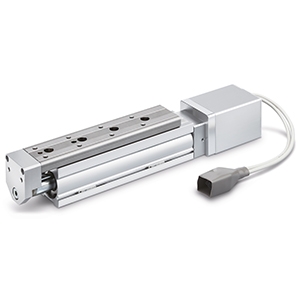

LESYH8LGA-75C-R1

Description

The LESYH*G improves on the high precision LESYH slide table by adding a higher performance 24VDC step motor.  This motor also includes a battery-less absolute encoder, which allows the actuator to be powered down without losing its positional awareness.  The LESYH*G offers the most superlative features in the LES line including the highest acceleration / deceleration, highest speed, highest load capacities, and highest pushing force.  The external motor can be mounted inline with the table, or in parallel to the left or right.  The JXC*H motor controller options include Ethernet fieldbus protocol compatibility or parallel input from the machine's PLC. - Body size:  8, 16, 25 - Strokes: 50, 75, 100, or 150mm - Maximum work load: 12 kg (horizontal), 20 kg (vertical) - Maximum pushing force: 765 N - Maximum speed: 800 mm/s - Maximum accel / decel: 10,000 (horizontal), 5,000 (vertical) mm/s² - Positioning repeatability: ±0.01mm
