LEJS40NYA-200

Description

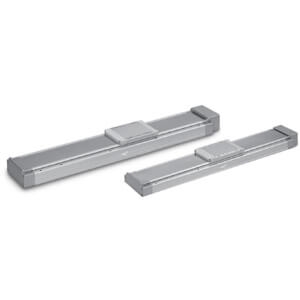

The LEJS is available in a motorless type, permitting the mounting of an AC servo motor other than the standard chosen by SMC.  Shaft coupling and mounting patterns are compatible with 8 servo motor series from 5 manufacturers.  Manufacturers include Mitsubishi, Yaskawa, Sanyo Denki, Omron and Panasonic - Body sizes: 40 (100W), 63 (200W), 100 (750W) - Maximum workload: 55 kg (size 40), 85 kg (size 63), or 400 kg (size 100) - Maximum speed: 2300 mm/s (size, lead, and stroke dependent) - Maximum acceleration:: 20,000 mm/s² (40, 63) 9,800 mm/s² (100) - Positioning repeatability: ±0.01mm (size and lead dependent) - Stroke range: 200 to 1500mm in 100mm increments
