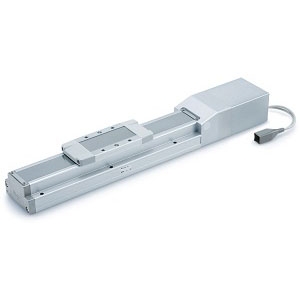

LEFSH25FA-100B

Description

LEFS*F is a high performance version of the standard slider, equipped with a direct mounted, inline motor.  Typical load capacities have increased 9-50%.  Cycle time is dramatically reduced by a combination of higher maximum speed and acceleration/deceleration.  Note that maximum speed gains are primarily in the 50-400mm stroke range, ranging from 5-36% faster depending on motor size and ballscrew pitch.  A new high performance step motor controller, the JXC*H, pairs with the LEFS*F actuator.  Actuator dimensions and mounting are identical to the standard LEFS, allowing an upgrade for existing equipment.  I/O and actuator cables are also identical to the standard LEFS.   - Body sizes: 16, 25, 32, 40 - Maximum work load: 75 kg (horizontal); 25 kg (vertical) - Maximum speed: 1500 mm/s (H lead, size 25) - Maximum acceleration: 9800 mm/s² - Stroke range: 50 to 1200mm in 50mm increments - Positioning repeatability: ±0.02mm (±0.015mm high precision type) - Motor type: 24 VDC step motor with incremental A/B phase encoder
