KK130P-02F

Description

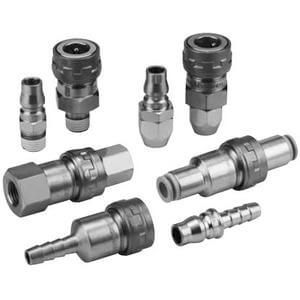

S coupler series KK employs a unique connection method. A slim body design and large effective area are achieved with a construction that does not use steel balls or valve springs and therefore does not restrict the flow path. Together with a reduction of the body size, pressing parts and resin parts are used to achieve an overall weight reduction. - Plug & socket variations: male & female thread, barb fitting, nut fitting, one-touch fitting - Operating pressure range: 0 to 1.5MPa, one-touch fitting types : 0 to 1.0MPa - Proof pressure: 2.0MPa - Male thread types provided with sealant as standard
