ISE20B-L-M-M5-A2

Description

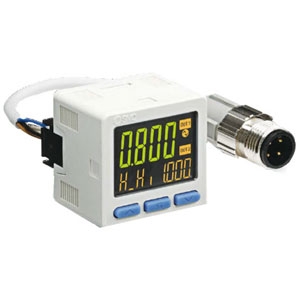

ISE20B-L is a digital pressure sensor supporting the IO-Link communication protocol.  When paired with an IO-Link master, measured values, and settings can be accessed from the HMI screen of a PLC.  ISE20B-L incorporates IO-Link version 1.1 and COM2 speed. 16-bit process data include 2 output bits for set points, a diagnosis bit and 13 bits for the measured value. The 3-screen, 3-color display shows the instantaneous reading in red or green, and the setting label and its numerical value in orange.  ISE20B-L is UL/CSA, CE and RoHS compliant, with an IP65 enclosure rating. - IO-Link enabled sensor for wet or dry environments, with an IP65 rating - 3 setting modes: 3-step, simple, function selection - 5 pressure units: MPa, kPa, kgf/cm2, bar, psi - IO-Link mode: 16-bit digital process data - SIO mode: 1 switch output (selectable NPN or PNP) - Port sizes: M5 (female), 1/8 Rc (male), 1/8 NPT (male) - Bracket or panel mounting options
