HRS100-A-46
- SKU:
- HRS100-A-46
- Category:
- Large Capacity Chiller
$12,650.00
Share product:
100% Guarantee Safe Checkout

Shipping calculated at the checkout
Description

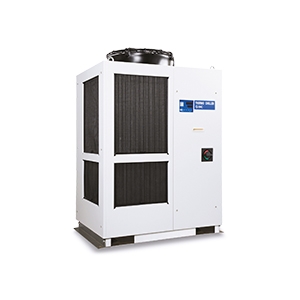

HRS high capacity standard chillers offer cooling capacities of 9.5, 14.5, and 20.5 kW. Coolant and refrigeration circuits are included in a compact package. The refrigeration circuit is air cooled by a single large fan, with a low sound level of 70~75 dB(A) depending on capacity. Alternately, facility water cooled versions are also available. Set tempertures are PID controlled, while the system is monitored for 42 alarms. Additional features include a heating function, serial communication, and IPX4 ingress rating for outdoor installation. - Cooling capacities: 9.5 kW, 14.5 kW, 20.5 kW (60Hz) - Temperature range setting: 5 to 35°C - Temperature stability: ±0.1°C (10, 15 kW); ±1.0°C (20 kW) - Power supply requirement: 3ph 380~415 VAC 50/60Hz, 3ph 460~480 VAC 60Hz - Waterproof specification: IPX4 - Refrigerant: R410A (HFC) - Circulating fluid: Tap or deionized water, or 15% ethylene glycol solution - Option X168 adds Ethernet I/P™ communication (only available as part number HRS200-AN-46-KS-X168).
