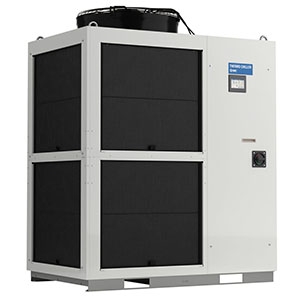

HRS400-A-46

Description

HRS high capacity standard chillers offer cooling capacities of 9.5, 14.5, 20.5 kW and 38 kW.  Coolant and refrigeration circuits are included in a compact package.  The refrigeration circuit is air cooled by a single large fan, with a low sound level of 70~75 dB(A) depending on capacity.  Alternately, facility water cooled versions are also available.  Set temperatures are PID controlled, while the system is monitored for 42 alarms.  Additional features include a heating function, serial communication, and IPX4 ingress rating for outdoor installation. - Cooling capacities: 9.5 kW, 14.5 kW, 20.5 kW, 38 kW - Temperature range setting: 5 to 35°C - Temperature stability: ±0.1°C (10, 15, 38 kW); ±0.1°C (20 kW) - Power supply requirement: 3ph 380~415 VAC 50/60Hz, 3ph 460~480 VAC 60Hz - Waterproof specification: IPX4 - Refrigerant: R410A (HFC) - Circulating fluid: Tap or deionized water, or 15% ethylene glycol solution
