FC3W504-N03-A2N-NZ

Description

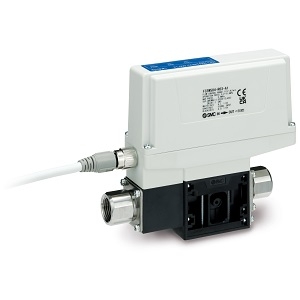

FC3W is a flow controller for water between 0-50°C. A motor driven adjustable flow valve works together with feedback from a Karman vortex flow sensor to establish a flow rate corresponding to an analog input signal. When a single water supply source is divided into multiple lines, the flow rate between lines can be inconsistent. FC3W controllers can adjust flow on each line to a constant rate. Power, control, and error status LEDs confirm operation. The device is also grease free and IP65 rated. Please be aware that FC3W does not include a flow shutoff feature. Pair the controller with a VXZ 2-port solenoid valve to stop flow for any reason. Meets CE, UKCA and RoHS certifications. - Flow ranges (lpm): 0.5-4.0, 2.0-16.0 - Port sizes (Rc): 3/8, 1/2 - Operating pressure (MPa): 0.2-0.4 - Power supply: 24 VDC - I/O signals: 1-5 or 0-10 VDC, or 4-20mA - Accuracy: ±5%F.S. - Response time: ≤10s
