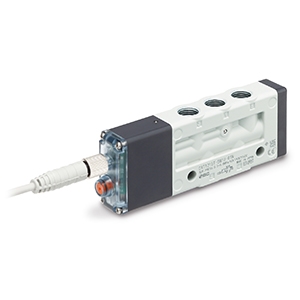

DXT1215T-5WOU-01F

Description

DXT1215 is a high-speed pilot operated solenoid valve with large flow rate.  Available as 3-port and 5-port configurations, the fast-switching DXT1215 valve can be actuated 200 times per second.  Applications for DXT1215 include hot melt gluing systems, blow-off sorting and high-speed delivery process. - Fast switching valve: ON: 2.5ms OFF: 3ms - Large flow: up to 330 L/min - Enclosure: IP67 - Available as 3-port and 5-port configuration - Standard M8 electrical connection - Power saving: 1.5W (Inrush: 6W, holding 1.5W)
