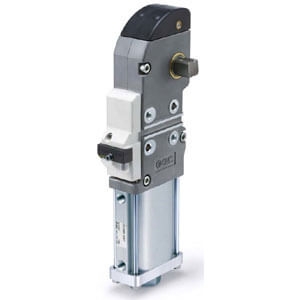

CKZ3N50-105RPF-X2742A

Description

CKZ3N power clamp conforms to the NAAMS standard.  The improved design reduced weight by up to 39% with aluminum body.  The rounded cover design and release button with minimal protrusion, reduce weld spatter accumulation.  The arm opening angle ranges from 15° to 135° and can be easily changed by replacing the stopper body.  Available in 50 and 63 bore sizes. - Complies with NAAMS standard (CKZ3N) - 9 opening angles: 15, 30, 45, 60, 75, 90, 105, 120, 135 - 75 types of arm variations (CKZ3N) - Metal cover and metal switch cassette options available - Optional manual handle operator (X2568) available
