CG1YB20-75Z

Description

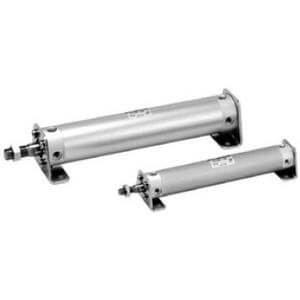

Series CG1Y smooth acting, single rod, double acting air cylinder has 8 bore sizes and can meet application need where low pressure or low speed is required. The tube is impact extruded aluminum to produce an extraordinarily smooth finish, allow low break-away pressure and smooth stroke action. Various mounting bracket options are available. Female piston rod threads are available as a standard option. Auto switch capable. - Minimum operating pressure: 0.01  to 0.02 (MPa) - Double acting, single rod - Bore sizes: 20, 25, 32, 40, 50, 63, 80, 100 (mm) - Standard stroke: 25, 50, 75, 100, 125, 150, 200, 250, 300 (mm)
