25A-VX214HZ2KXB

Description

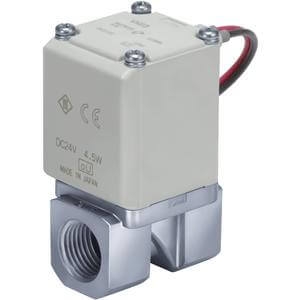

The VX2 for medium vacuum (0.1Pa.abs or more) is available with brass and stainless steel body. Three body sizes are available, with port size ranges from 1/8 to 1/2 inch. FKM seal, oil-free and non-leak construction is standard. EPDM seal is optional. Flow rate ranges from Cv of 0.23 to 2.21. - IP65 enclosure - Normally Closed and Normally Open type available, Class B coil - Oil-free and non-leak construction specially designed for medium vacuum application - Power consumption: size 1 - 4.5w; size 2 - 7w; size 3 - 10.5w - Body material: C37 (brass), stainless steel - Copper and Zinc free
