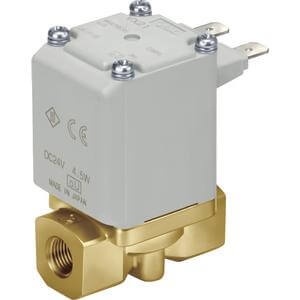

25A-VX222LZ1U

Description

The VX2 for water is available with brass and stainless steel body. Three body sizes are available, with port size ranges from 1/8" to 1/2".  NBR seal is used as standard and FKM or EPDM is optional. Flow rate ranges from Cv of 0.23 to 2.21. - IP65 enclosure - Normally Closed and Normally Open type available, Class B coil - Special construction improves service life when compared with current shading coil - Power consumption: size 1 - 4.5w; size 2 - 7w; size 3 - 10.5w - Body material: C37 (brass), stainless steel - Copper and Zinc Free
