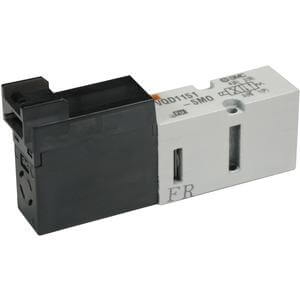

10-VQD1151V-5MO-M5

Description

VQD1000 series 4 port, direct operated, poppet solenoid valve offers large flow capacity in a compact, lightweight body. Vacuum applications (up to -100kPa) are possible. Components of the VQD1000 valves that are in contact with fluid are all copper free. The VQD series offers a remarkably quick and stable response time. - Fluid: Air/inert gas - Operating pressure range: 0MPa/10Torr (Vacuum) - 0.7MPa (7.1kgf/cm 2 ) - Effective area (Cv factor): Standard type 0.9mm 2 (0.05);high flow type 1.5mm 2 (0.08) - Coil rated voltage: 12, 24VDC - Response time: ON: 4ms; OFF: 2ms - Ambient/fluid temp: -10 to 50°C
